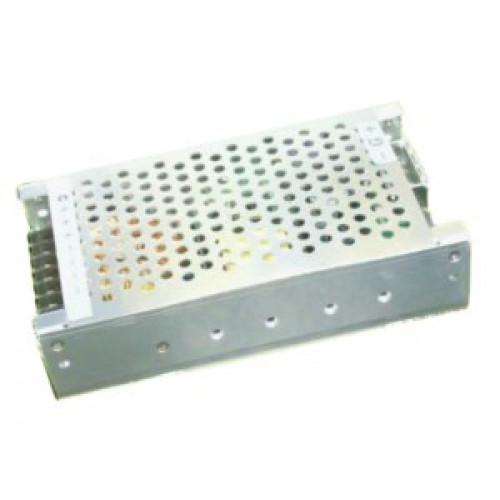

PST-DC4824, 48 volt to 24 volt DC/DC Converter (Regulator)
Sorry! We don`t have specification!
Sorry! We don`t have MSDS!
PST-DC4824, 48 volt to 24 volt DC/DC Converter (Regulator)
Input Voltage MIN (V) : 36
Input Voltage MAX (V) : 70
Output Max Current (A) : 6.25
Output Voltage (V) : 24
Output Connector : Screw Terminal Block
Output Wattage (W) : 150
Isolation : Isolated
Output max Current <60sec (A) : 9
Protections : Output short protected, Input Polarity, Input Fuse
Cooling (passive if not specified) :
Output Ripple(mV or %) :
Style : Enclosed module
Safety :
Notes :
Environment : 0C to +65C operating, -40C to +75C storage
Humidity max (%) : 85
Efficiency (%) : 80
HiPot/ESD :
Input Frequency(Hz) : DC
Input Connector : Screw Terminal Block
MTBF :
Weight (g) : 900.00
These fully isolated DC/DC converters are useful for voltage conversion to operate 24 volt electronics off 48 volt vehicles, golf carts, fork lifts and telecom buses. Best for radios, stereos, DVDs, CB radios, transmitters, programmable controllers. These DC to DC converters closely regulate the output voltage over a range of input voltages.
Fully isolated 150 Watt 48 volt to 24 volt DC/DC converter at low cost. Suitable for voltage stabilization of automobile electronics, special purpose UPS, etc
