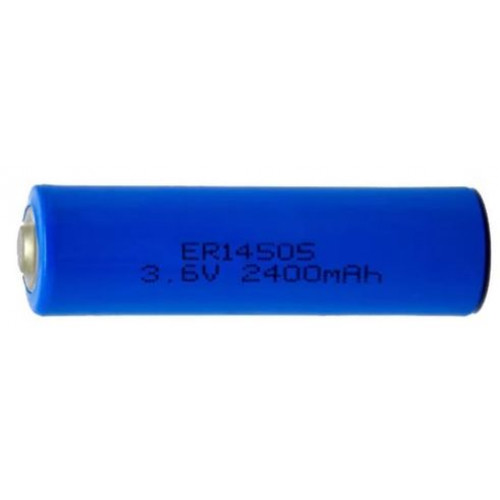

ER14505S, High Temperature, Primary Not Rechargeable Lithium 14mm 50.5mm diameter Battery, (Lithium Thionyl Chloride Li/SOCl2 cells)
Download MSDS
Model : ER14505S
This product has a minimum quantity of 700
ER14505S, High Temperature, Primary Not Rechargeable Lithium 14mm 50.5mm diameter Battery, (Lithium Thionyl Chloride Li/SOCl2 cells)
Battery type : Lithium Thionyl Chloride, non rechargeable
Battery capacity, nominal (mAh) : 1500
Shape : Cylindrical
Diameter (mm) : 14.5
Length (mm) : 50.5
Nominal Voltage (V) : 3.6
Discharge current (mA) : 10
Max discharge current (mA) : 100
Pulse discharge current (mA) : 200
Cut off voltage (V) : 2
Operating Temperature,Discharge (C) : -55~+85
Test reports or certificates : UL 1642 listed
EXTRA NOTE :
Weight (g) : 20.00
- We are using a new state-of-the-art production line with demonstrated ability to produce cells with tighter tolerances, higher capacity, and lower internal resistance.
- We have updated the chemistry to almost completely eliminate passivation effects, which show up as voltage sag during start-up. This also improves the performance under cold weather conditions
- We have improved the design to be more tolerant of shock and vibration. We have found in the past that vibration damage is the biggest reason that cells sometimes have short service life.
- We have instituted 100% vibration testing.
- Batteries commonly used for drilling equipment and temperature critical machinery.
